STOP GUESSING AND TRIMMING. Capture Wall Angles. Transfer Flawless Layouts. Cut Once.

Product Introduction

“Woodworkers love square. Builders treat it like horseshoes — close counts. So when you’re fitting shelves, stair treads, or risers into an existing space that’s just a little off, guesswork and recuts are the price of admission. Not anymore.

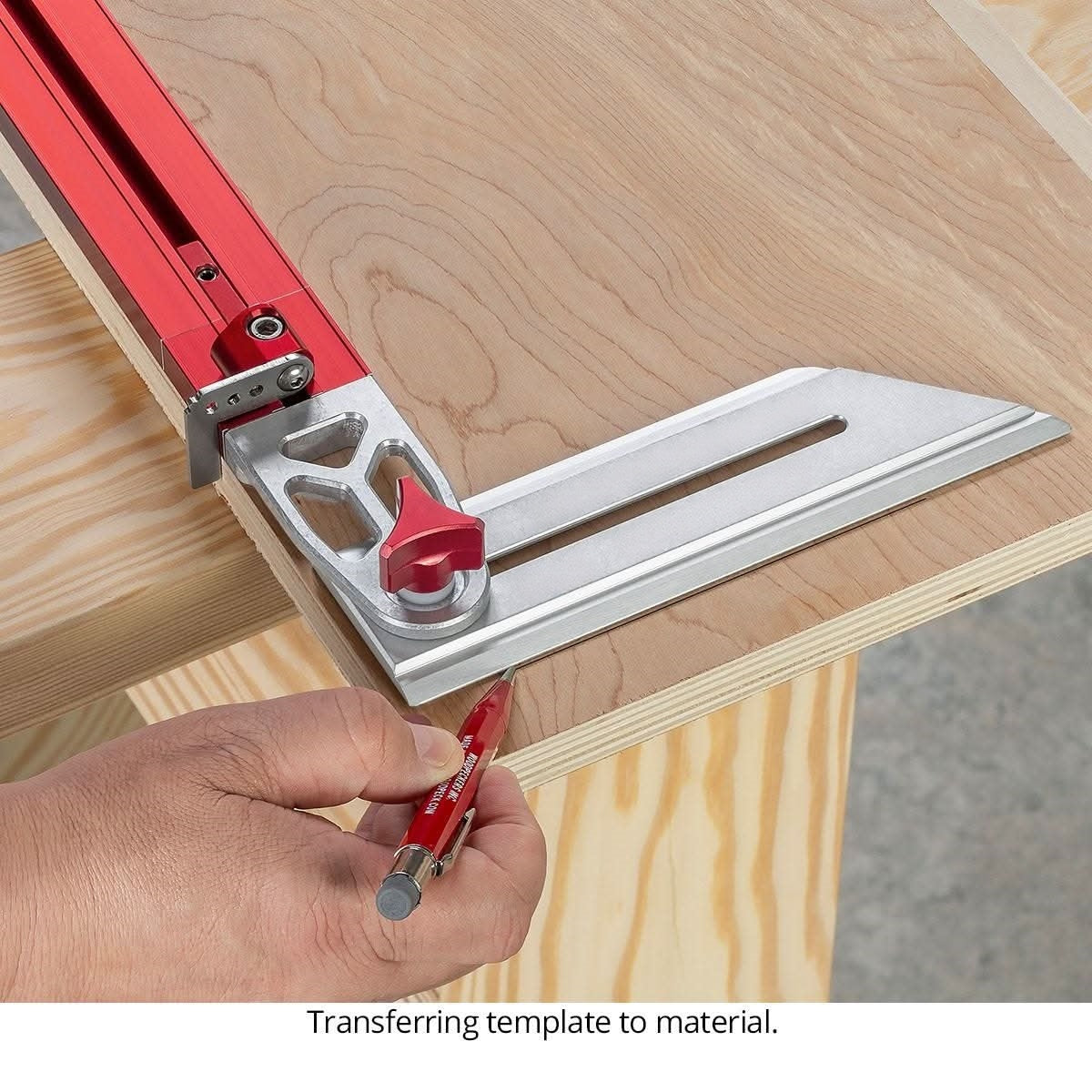

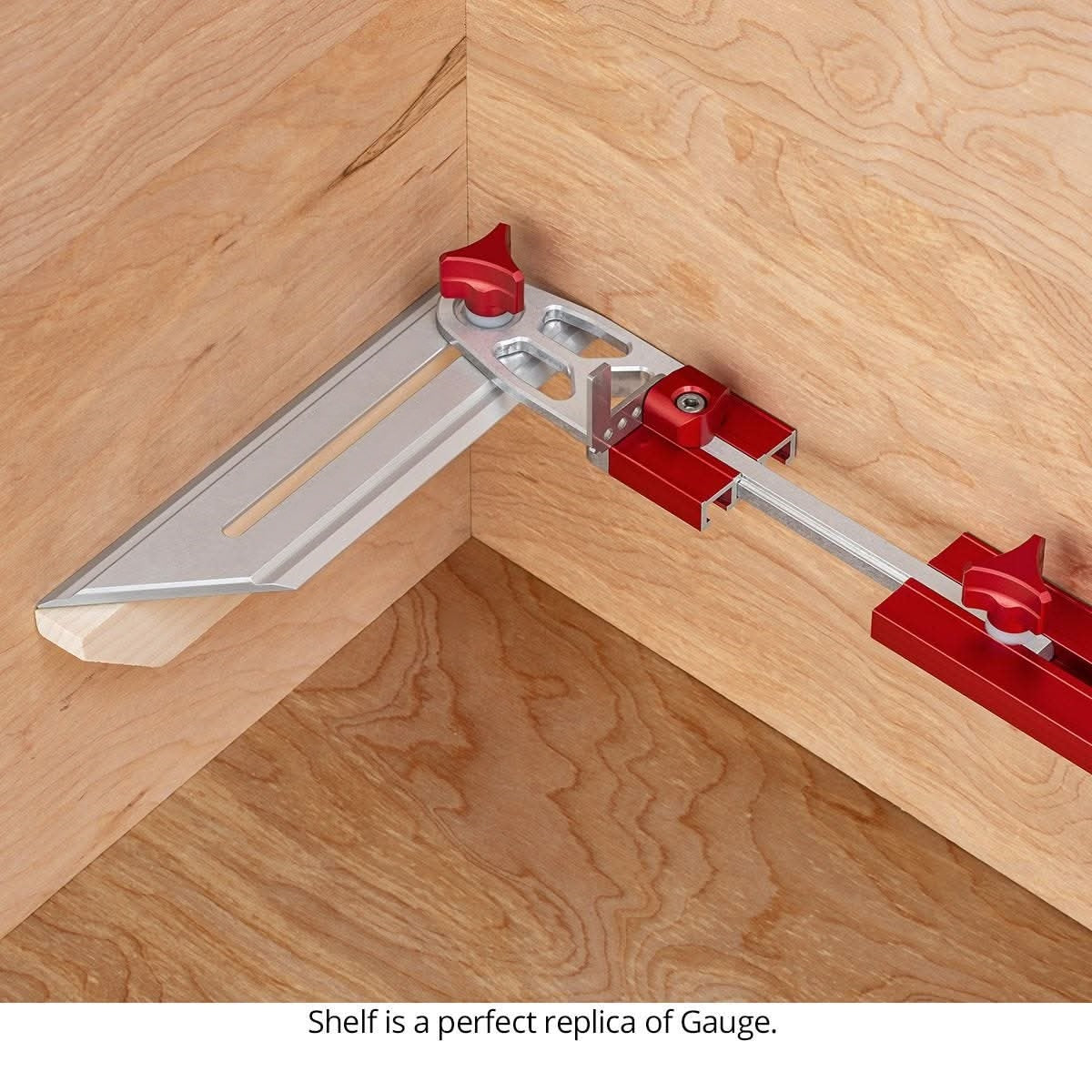

This precision gauge instantly captures the real-world shape of any opening from 17″ to 64″ wide, locking both the length and the exact angle of both walls. Then you transfer that physical template directly to your stock — flip down the integrated edge stops for a perfect reference, mark your ends, and cut. The shelf drops right in. No measuring, no math, no ugly gaps.

Most woodworkers try to measure their way out of an out-of-square opening — and the math almost never adds up. This gauge replaces all that with a simple physical transfer: set it in place, lock it, move it to your workpiece, and mark. The adjustable bevel ends swing to match any wall angle, the sliding connector lets you fine-tune length right inside the opening, and the flip-stops give you a dead-square edge reference that homemade jigs and competing tools just don’t have. It’s the difference between cutting once and cutting three times.”

Product Features

🎯 Captures Both Length & Angle Simultaneously

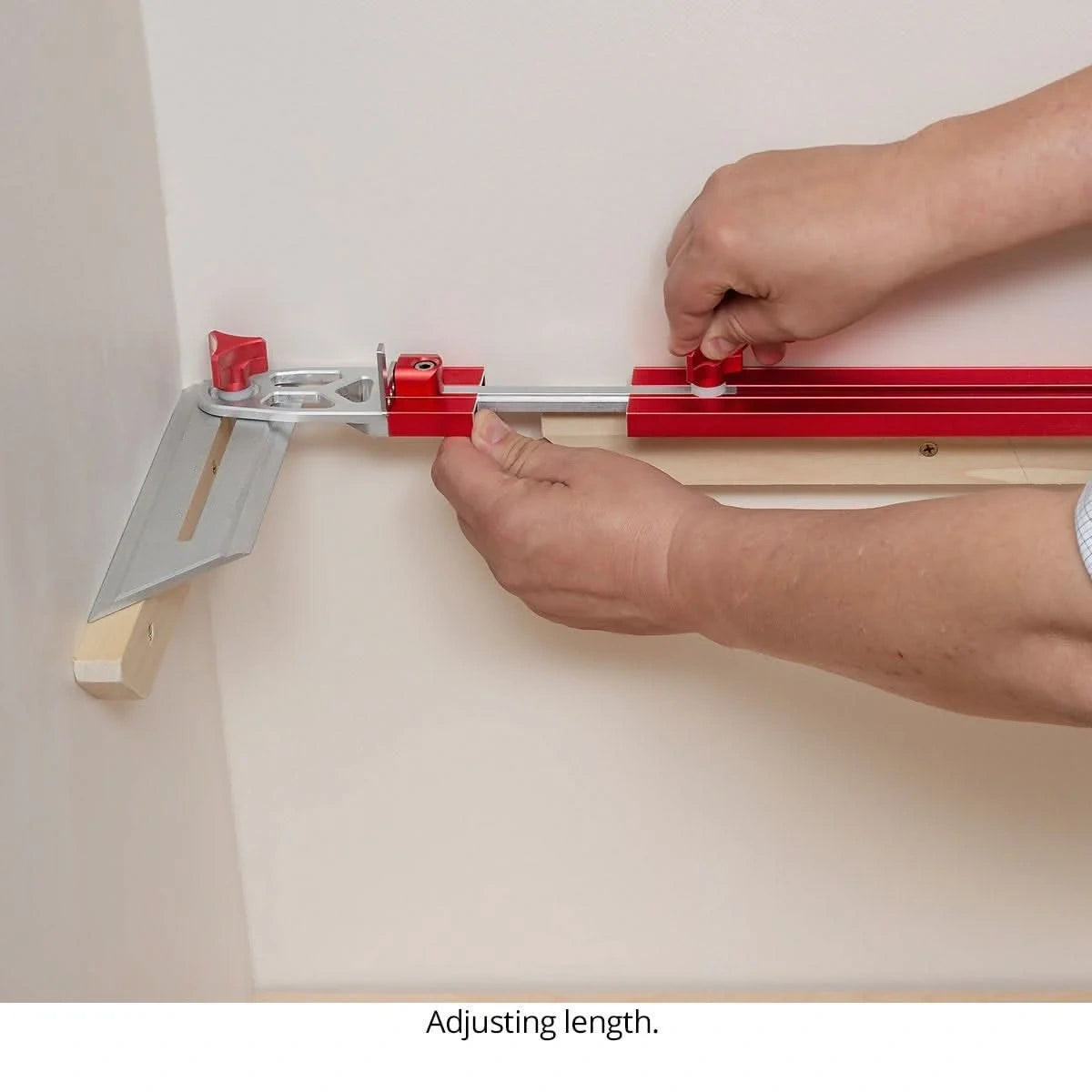

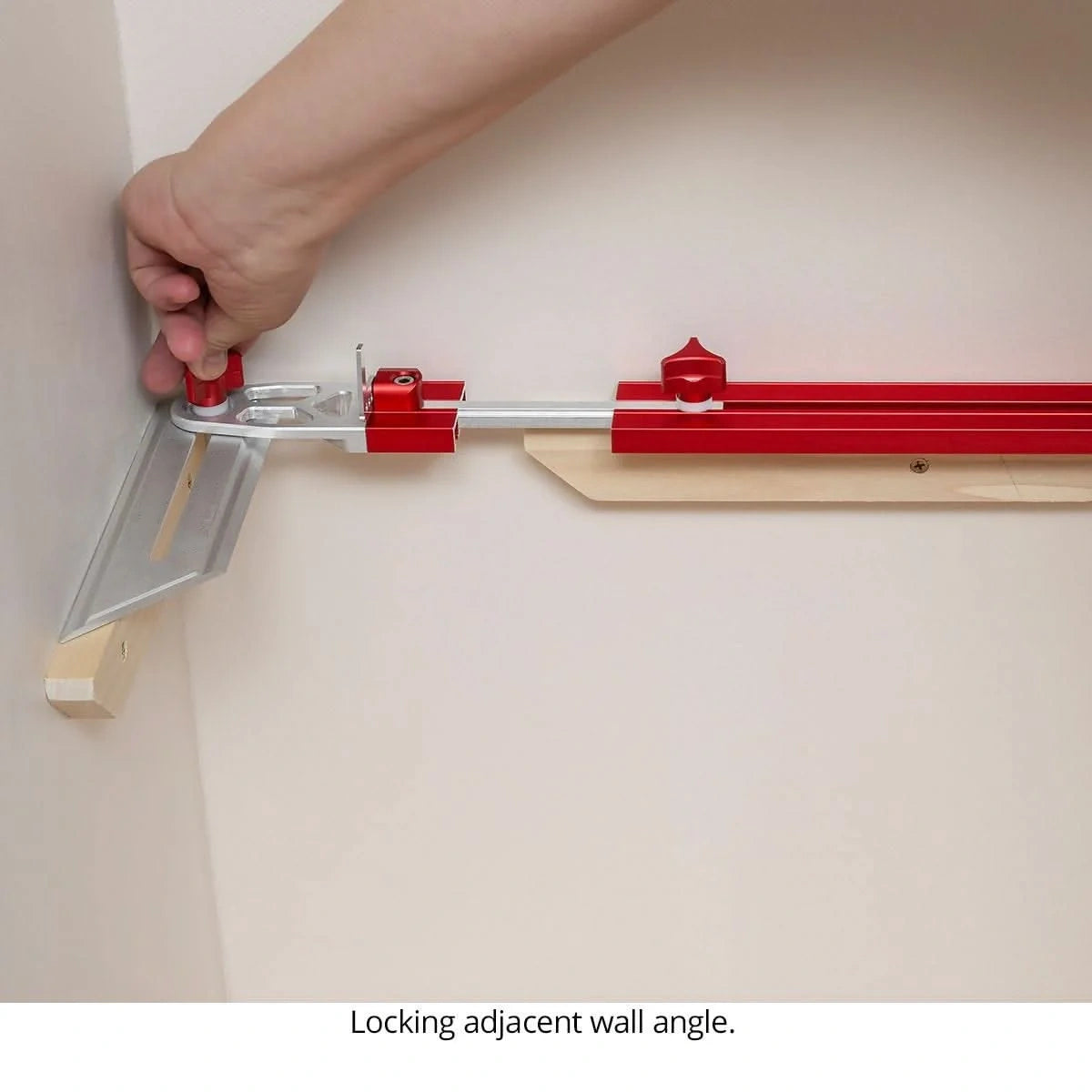

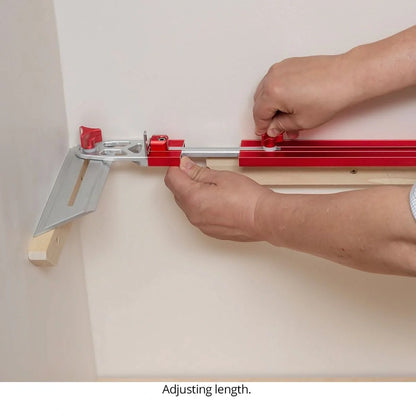

“Two adjustable bevel ends swing to match adjacent wall angles. A sliding connector lets you dial in length right inside the opening. Lock it once and you’ve captured the entire opening — no protractor, no angle finder, no calculator needed.”

📏 17″ to 64″ Adjustable Range
“Modular beam system with four 12″ sections and one 6″ section covers shelves and treads from 17″ up to 64″ wide. Add or remove sections to match your opening. One tool, countless projects — from spice racks to full staircases.”

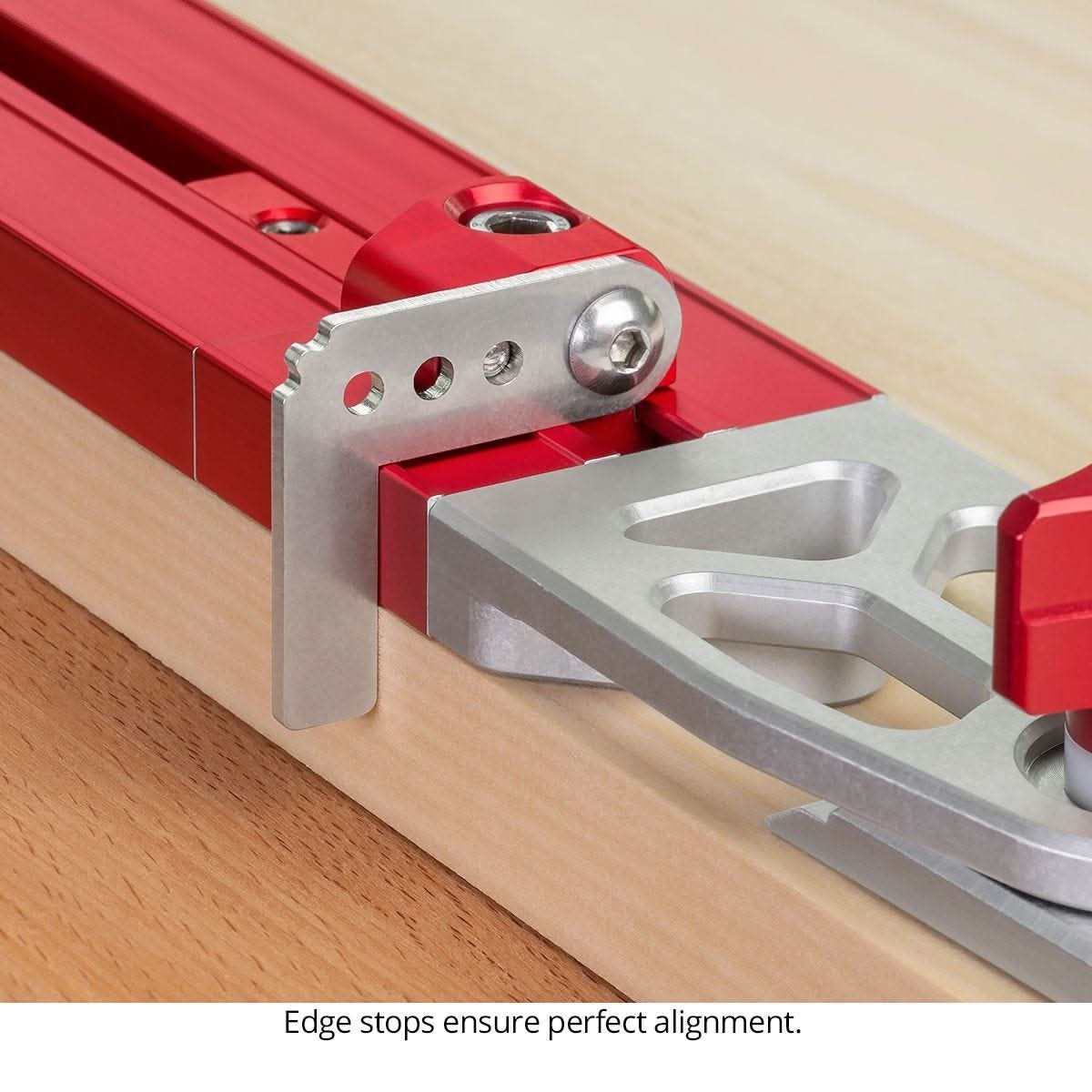

🛑 Flip-Stops for Perfect Edge Reference
“Two edge flip-stops give you a rock-solid reference to the edge of your stock. When you transfer the template, flip them down, butt them against the board, and mark. No more aligning by feel — mark and cut with absolute confidence.”

🇺🇸 Precision-Machined & Inspected in the USA
“Adjustable bevels are CNC-machined from aircraft-grade aluminum and clear anodized for durability. Beams are anodized in classic red. Each gauge is carefully inspected before leaving the workshop in Ohio. Stored in a Systainer with custom-fit foam liner.”

Product Specifications

Tool Type: Layout and transfer gauge for stair treads, shelves, risers
Adjustable Range: 17″ to 64″ (modular beam system)
Beam Sections: (4) 12″ sections + (1) 6″ section
Ends: Two adjustable bevel ends — captures wall angles automatically
Edge Reference: Two flip-stops for square, repeatable transfer to stock
Material: Aircraft-grade aluminum, CNC-machined, anodized

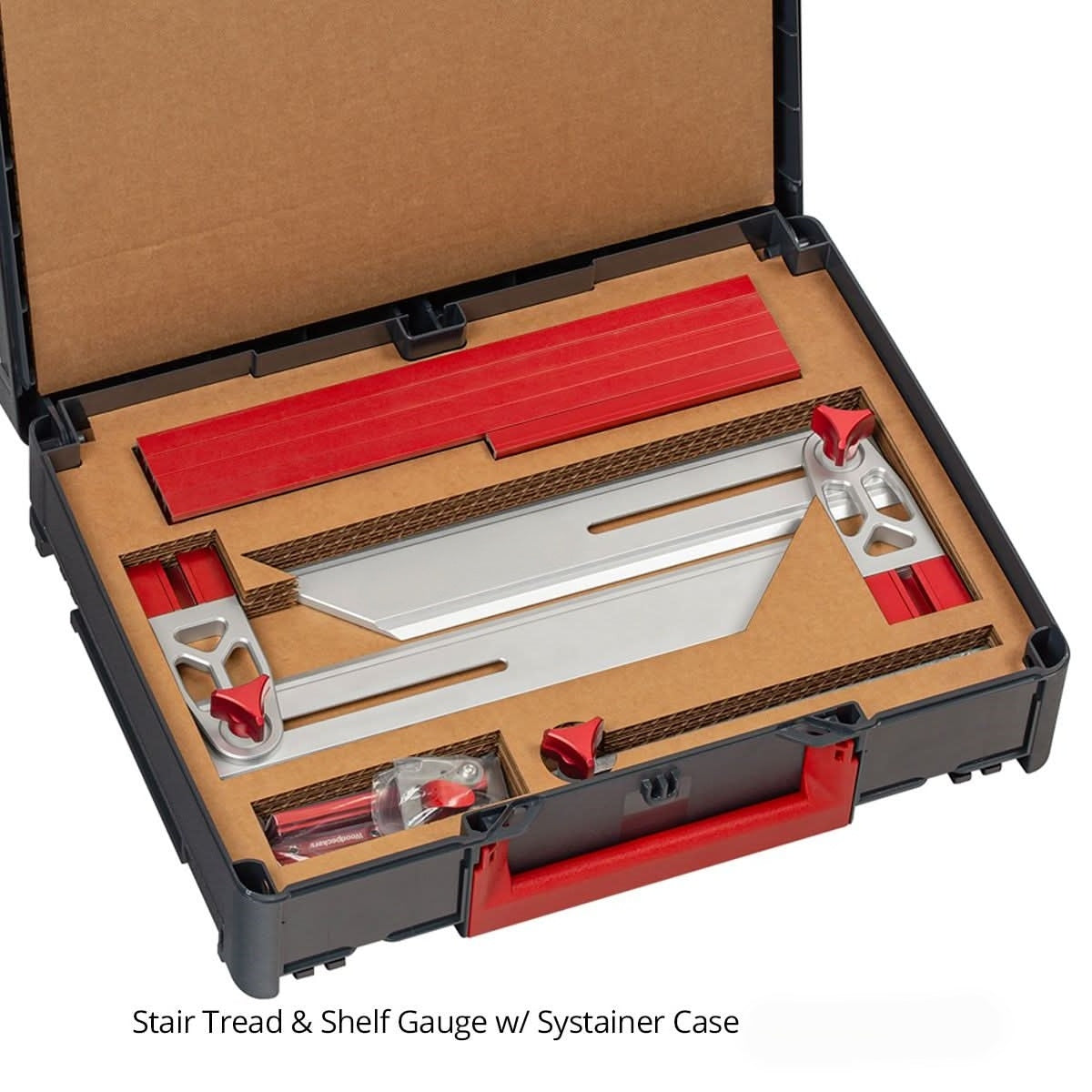

Storage: Systainer with custom-fit foam liner
Country of Origin: Made in USA

Your Layout & Transfer Gauge Includes:

4 × 12″ Anodized Beam Sections
1 × 6″ Anodized Beam Section
2 × Adjustable Bevel Ends (aircraft-grade aluminum, CNC-machined, clear anodized)
2 × Edge Flip-Stops
Connecting Bars & Knobs
Systainer Storage Case with Custom Foam Insert
User Manual

✨ “Stop measuring, guessing, and recutting.”
Grab the gauge that captures the real shape of any opening and transfers it perfectly to your stock, so your shelves and treads drop right in the first time.
